    Piano style TRANSMITTER
    bull MN serial

    High-performing control for drills and lifting, Many individual configurations.



    Bull MN means in middle size transmitter without display, it represents the compendium between practicality and rationality.
    A compact transmitter in shape and size, whose panel can contain both, joysticks and switches, buttons and potentiometers that make it suitable for various situations and customer customization needs.

    find out more about application
    Download the BULL MN Brochure

    views

    BULL SC SERIAL

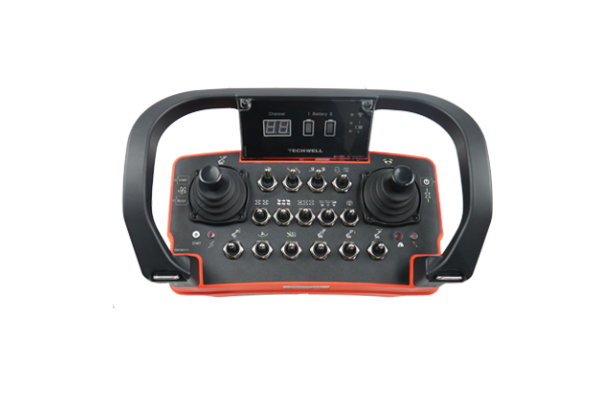

    TOP VIEW

    BULL MC SERIAL

    LEFT VIEW

    BULL LN SERIAL

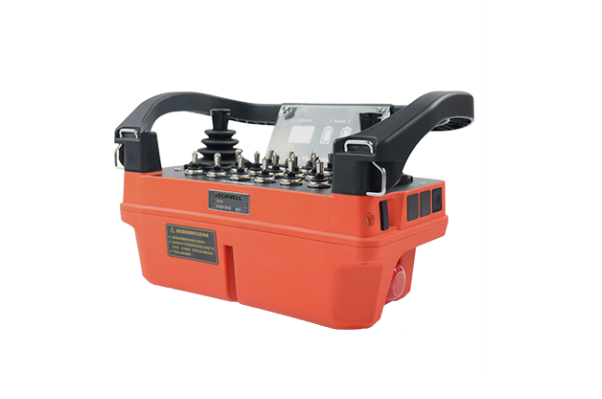

    Right view

    BULL LN SERIAL

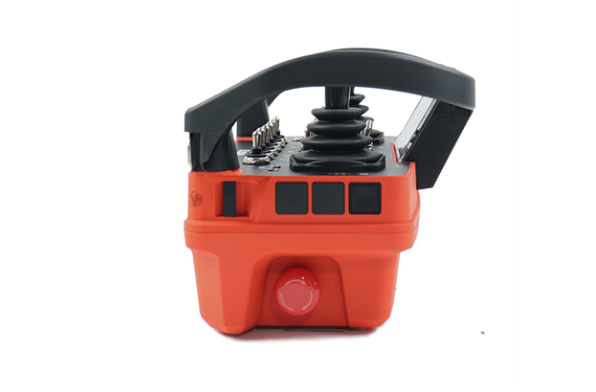

    Side view

    Product description

    Dimensions and Weight

    420 × 195 × 193 mm
    ca. 2.0 kg (4.4 lb.)

    Operating temp

    -25℃～+70℃
    optional low to -40℃

    Frequency ranges

    433MHz : 427.00～436.300MHz
    470MHz : 472.35～485.775MHz

    connection and distance

    cwired & wireless
    cable control only

    More than 150meters
    optional 1,000meters

    Available output

    → PWM+Relay in hard wire;

    Available protocols

    → CAN;
    → CANOPEN;
    → MODBUS-RTU/TCP;
    → PROFIBUS-DP;
    → PROFINET;
    → MORE REQUESTED;

    Operating elements & control functions

    → Up to 5 joysticks or up to 12 linear levers
    → Individual combination of push buttons, toggle switches, rotary switches (maintained / spring-return) and other operating elements
    → On the side: up to 8 one-step push buttons
    → STOP impact switch
    → Up to 64 control functions (on / off)
    → Up to 30 analog functions for joysticks / linear levers
    → Up to 12 additional analog functions, e. g. for potentiometer switches
    → Optional:
    → Joystick with integrated button
    → Z-axis switch for the simultaneous control of 3 drives

    Extended control concepts

    → Combined operation
    Combined operation allows the operator to control up to 4 cranes simultaneously with just one transmitter

    → Pre-selection of trolley / hoist
    With this function, where 2 trolleys are available, the operator can select either an individual trolley or both trolleys for simultaneous control.

    → Catch-release
    The catch-release function allows control of a crane or machine with two or more radio controls. Two or more operators can take turns working with the same crane or machine without having to switch the control device.

    design unique control platform by yourself +

    BULL MN KEY configure

    Connection and Distance
    Vision Protocols and output vision
    Operating Elements
    Control Functions
    Extended Control Concepts

    Demand Form CAD MODEL

    BULL MN KEY configure

    Connection and Distance
    Vison Protocols and output vision
    Operating Elements
    Control Functions
    Extended Control Concepts
    Feedback date for Display

    Demand Form CAD MODEL

    Main Features

    → Prototyping and series production

    → Total Configurability

    → Programing and diagnostic

    → Harsh environments

    → 4.3" Color Display

    → Monoaxial Joystick

    Contact Us about feedback display
